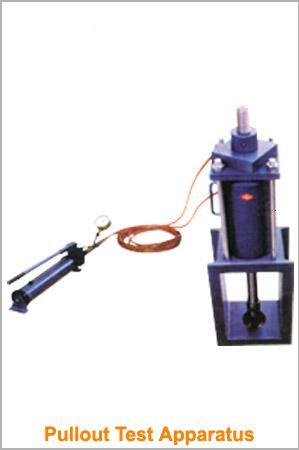

Pull Out Test Apparatus

Pull Out Test Apparatus
Pull Out Test Apparatus
Send Inquiry
Product Code : POT-26
Brand Name : NEW GHOSH INDUSTRIES
Product Description

With hard work of our highly skilled professionals, we have attained a special niche for ourselves by offering quality assured range of Pull Out Test Apparatus. The offered apparatus is used for testing and determining the strength of rock-bolt under field conditions. This apparatus is manufactured by utilizing premium quality components and modern technology under the stern vigilance of our highly adroit professionals. Additionally, this Pull Out Test Apparatus is made available in several technical specifications at rock-bottom prices.

Features:

  • Robust construction

  • Energy efficient

  • Long service life

  • Low maintenance

Other Info:

  • CAPACITY 250 KN (25 TONS)

  • CONSIST OF:

  • HYDRAULIC CENTRE HOLE JACK: 250KN CAPACITY WITH 54MM CENTRE HOLE, 15MM RAMTRAVEL, DOUBLE ACTING

  • LOAD GAUGE: 15OMM DIA, 250KN X 2.5KN

  • REACTION FRAME : 250KN CAPACITY WITH 90MM HOLE AT BASE

  • HAND OPERATED TWO STAGE PUMP

  • THERMOPLASTIC HOUSE: 6 METER LONG WITH PAIR OF QUICK COUPLINGS.

  • DIAL GAUGE: 0.01 X 25MM

  • HIGH STRENGTH TEST ROD: 30MM DIA

  • HIGH STRENGTH COUPLING,HAVING RH THREAD  TO SUIT TEST ROD ON ONE HAND AND LH THREAD TO SUIT 25MM DIA ROCK BOLTON THE OTHER END.
